| Mini
Wireless Camera |
|
|
|
|
| Description |

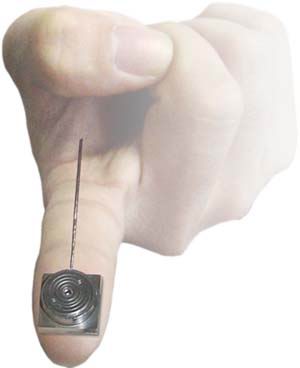

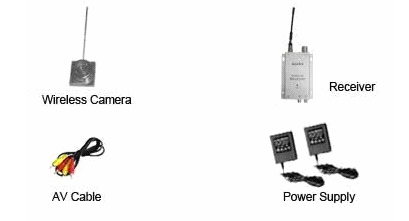

This is the world's smallest wireless
spy camera / receiver pack with or without
sound.
It can be hidden in just about
anything belonging to your environment
like clocks, lamps, radios, smoke detectors,
books, sun glasses, etc. Its detection
is much more difficult than a normal
camera. |
|
|
|
| Specifications
|
|
|
|
|
| Size |
15×15×20 mm |
| Camera apparatus
|
1/4 picture sensor |
| System |
PAL/CCIR NTSC/EIA |
| Validity pixel |
PAL 628×582 NTSC
510×492 |
| Picture area |
PAL 5.78×4.19mm
NTSC:4.69×3.45mm |
| Horizontal definition
|
380line |
| Scan frequency
|
PAL/CCIR 50HZ NTSC/EIA
60HZ |
| Minimum illumination
|
3LUX |
| Sensitivity |
+18DB-AGL ON-OFF |
| Output power |
300mW/50mW |
| Frequency control
|
adopt CPU frequency
lock the wreath to control, with
high frequency stability |
| Transmission signal
|
Picture / Sound |
| Deliver the distance
|
50/100M |
| Voltage |
DC+9V |
| Current |
200mA |
| Power consumption
|
640mW |
|
|
|
|
|
|
|
|

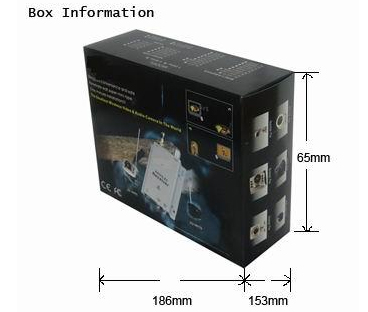

| Package
Information |
 |
 |
